Turner’s Ridge Property
Turner’s Ridge Property is comprised of 2 map-staked mineral exploration licences containing a total of 9 mineral claims covering 225 ha. The Property is located in western Newfoundland within the Province of Newfoundland and Labrador,

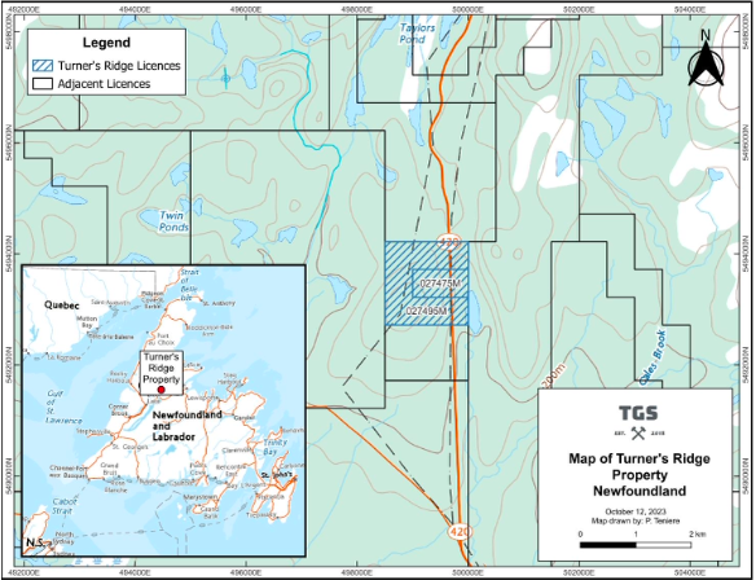

Location map for Turner’s Ridge Property, Newfoundland and Labrador

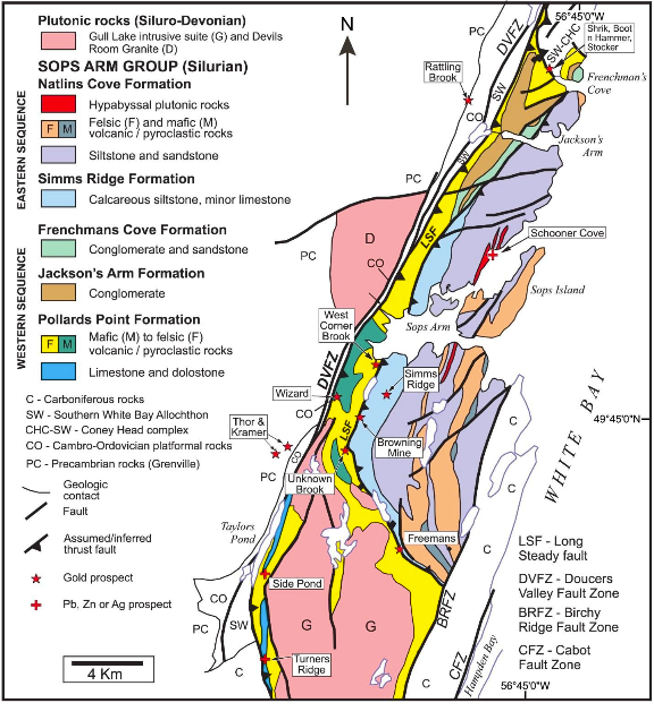

Geology of the Silurian Sop’s Arm Group in Western White Bay (Turner’s Ridge in south)

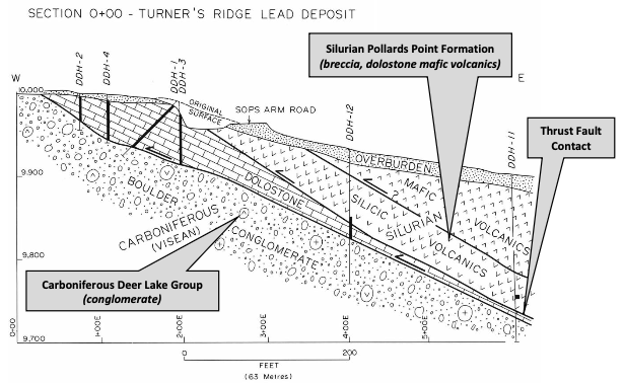

West-east section across the Turner’s Ridge Property and lead occurrence
Zinc and lead deposits in Newfoundland and MVT-style deposit types
2023 Prospecting Rock Sample Locations including IW Sample Locations

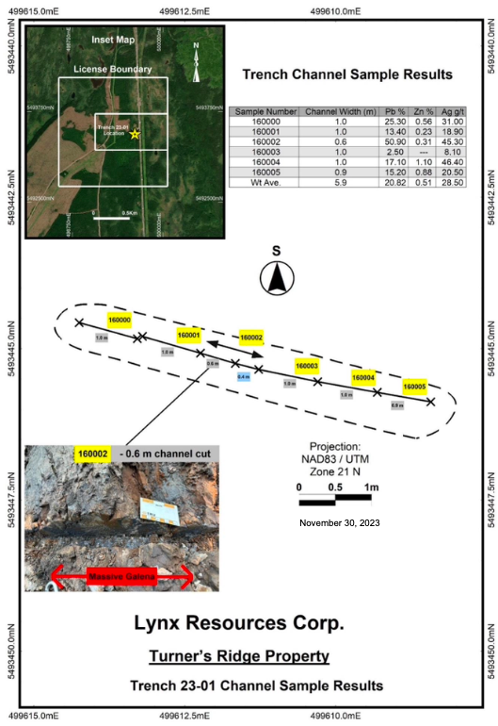

Trench 23-01 Channel Sample Results

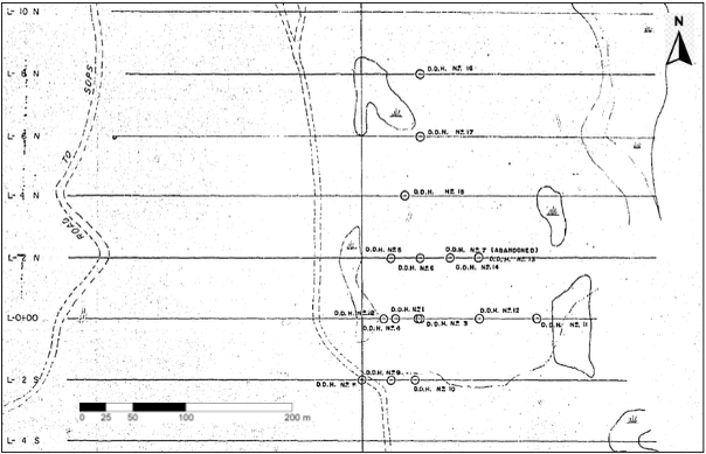

Location of Noranda 1977 drill holes (D.D.H.) at Turner’s Ridge lead occurrence

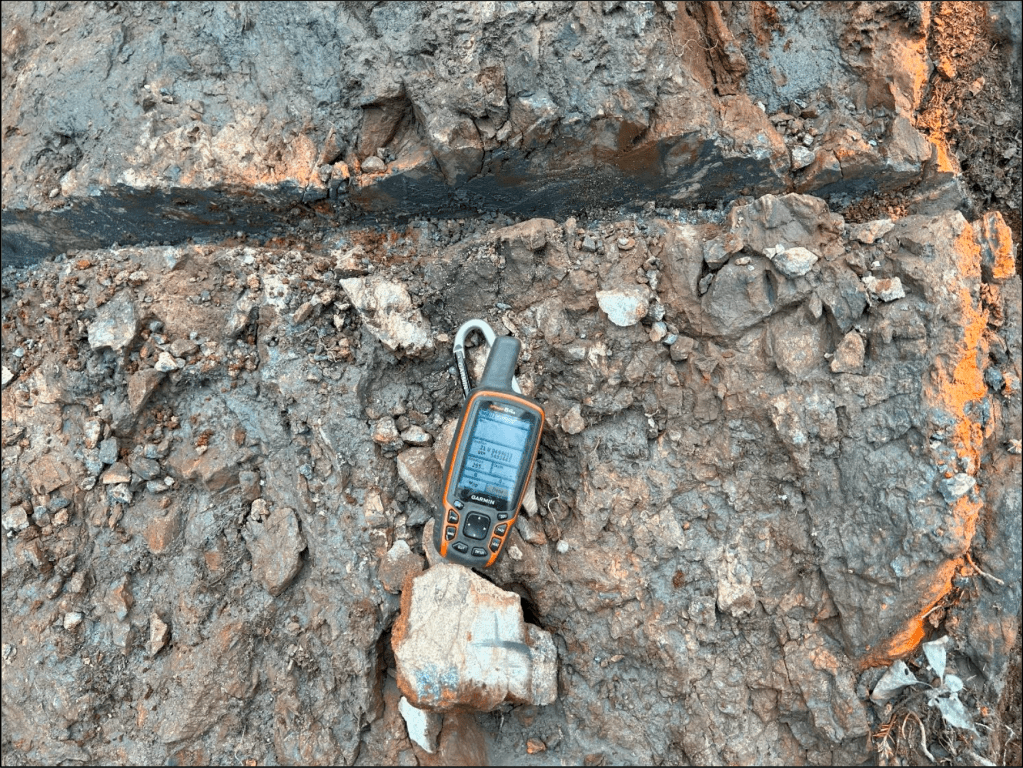

Recent channel sampling of exposed outcrop by Lynx geological team

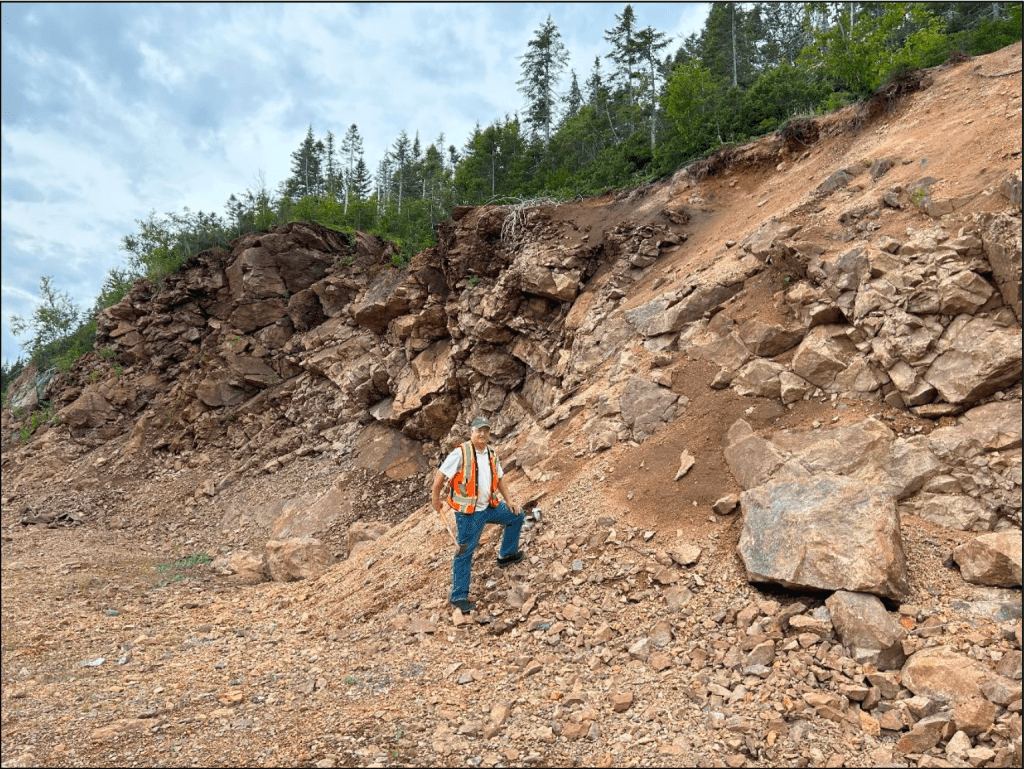

Turner’s Ridge lead occurrence along Highway 420
Exploration Highlights
Soil Sampling: 542 soil samples collected on a 1.5 km × 1.0 km grid defined a 700 m × 300 m north–south lead anomaly extending from the Turner’s Ridge showing, with peak values of 9.1 % Pb, 1.3 g/t Ag, 482 ppm Zn, confirming mineralized strike continuity.
Prospecting: Limited outcrop exposure, but grab sampling near the Turner’s Ridge quarry returned 13.6 % Pb and 54.2 g/t Ag, verifying surface mineralization adjacent to historical workings.
Channel Sampling: Six continuous 1 m samples over a 6 m trench (Trench 23-01) averaged 20.82 % Pb, 0.51 % Zn, 28.5 g/t Ag over 5.9 m, confirming high-grade galena mineralization in brecciated dolomite.
Drilling (Historical): Past operators Noranda, Brinex, and Spruce Ridge Resources drilled more than 30 holes intersecting galena-bearing dolomitic breccias, with highlights including 3.65 % Pb over 12.6 m (TR07-01) and 3.19 % Pb over 4.3 m (DDH 324-29-79).
Mineralization and Deposit Type
Turner’s Ridge hosts coarse to fine-grained galena with calcite, barite, pyrite, and sphalerite in intensely brecciated Silurian dolostone, where brecciation and alteration provided structural traps for lead-rich fluids likely sourced from the nearby Carboniferous Deer Lake Basin.
The mineralization represents a Mississippi Valley-Type (MVT) lead-zinc-silver system—stratabound, epigenetic, and carbonate-hosted—analogous to deposits at Port au Port and Daniel’s Harbour in western Newfoundland.
NI 43-101 Technical Report
effective December 1, 2023
Lynx Resources Corp.
